Interchangeable EOD Tool Heads

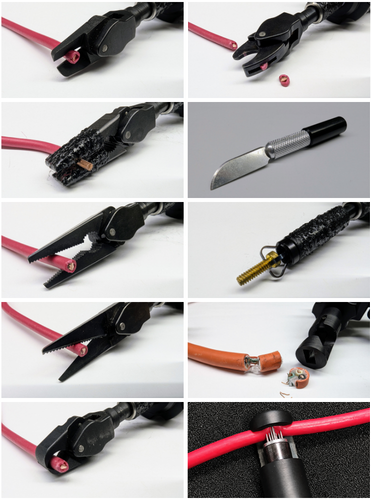

A suite of specialized EOD render safe tool system attachments designed to cut, shear, grip, pinch, short, and manipulate device components. Compatible across the EOD-1 platform for maximum operational flexibility.
Best For: Adapting to changing field requirements.
- Exceptional tactile feedback and control
- Modular tool head system for mission flexibility
- Purpose-built to address unique render safe challenges
- Lightweight, durable and field-ready
Adaptable for Unique EOD Render Safe Operations
The suite of EOD tool heads allow your operator to address field challenges with the right tools for the job. These interchangeable tool heads are each uniquely designed to manage typical device components like wires, cables, screws and more.
Tool heads labeled with “LCC” are compatible with both the LCC and MCC handle. The LCC tool heads can be directly attached to the LCC handle, and attached to the MCC handle using the LCC-to-MCC Adapter, enabling greater versatility in the field. However, tool heads labeled with “MCC” are not compatible for use with the LCC handle.
All of the EOD tool heads will fit through a Ø1.00 inch penetration hole or insertion point.
Made from a combination of aircraft-grade aluminum and hardened steel, these tool heads will provide long-term service for your EOD render safe operations.
Why EOD Operators Choose the EOD Tool Heads
Engineered for precision. Built for Safety. Designed for mission success.
Mission-Specific Tooling
Purpose-built tool heads address a wide range of render safe challenges. Cut, shear, grip, pinch, short, and manipulate wires, cables, screws, and other device components using the right tool for the task.
Adaptable To Changing Field Conditions
Interchangeable tool heads provide maximum operational flexibility. Quickly configure the EOD-1 platform to meet evolving mission requirements without carrying multiple specialized tools.
Cross-Platform Compatibility
Compatible across the EOD-1 tooling platform. LCC tool heads can be used with the MCC using the LCC-to-MCC Adapter, expanding capability while reducing equipment requirements.
Exceptional Operator Control
Maintain precise tactile feedback during critical operations. The mechanically actuated EOD-1 platform allows operators to accurately feel tool engagement while cutting, gripping, or manipulating device components.
Built For Demanding Operations
Engineered for long-term reliability in the field. Manufactured from aircraft-grade aluminum and hardened steel to withstand repeated use in challenging operational environments.
One Platform. Multiple Capabilities.
Reduce equipment burden without sacrificing capability. A single modular platform supports multiple specialized tool heads, enabling operators to adapt quickly while carrying fewer dedicated tools.
What EOD Tool Heads Are Available
Every tool head in the EOD-1 product line comes field-ready for EOD render safe operations.
LCC Tool Heads
Side Cutter (Pt#210)
Ideal for cutting wire and like materials up to gauge 3 AWG wire, or Ø.229 inch (5.83 mm) in diameter.
Flat Nose Plier (Pt#220)
Ideal for gripping wire and like materials. Pliers open up to Ø.90 inch (22.9 mm) at widest point, and fully collapse upon closure. Jaws are coated with electrically isolating paint, reducing risk of unintended electrical contact when manipulating charged components.
Needle Nose Plier (Pt#230)
Ideal for gripping wire and like materials. Pliers open up to Ø.96 inch (24.4 mm) at widest point, and fully collapse upon closure. Jaws are serrated, giving the operator improved grip on device components.
Scissor Head (Pt#240)
Ideal for cutting wire and like materials up to gauge 3 AWG wire, or Ø.229 inch (5.83 mm) in diameter.
Nipper Head (Pt#250)
Ideal for grabbing wire and like materials up to gauge 1 AWG wire, or Ø.289 inch (7.35 mm) in diameter.
Double Shear (Pt#260)
Ideal for shearing wire and like materials up to gauge 3 AWG wire, or Ø.229 inch (5.83 mm) in diameter. Produces a 1/16th inch sliver of removed material upon shearing.
Razor Blade Kit (Pt#270)
Ideal for cutting wire, film and similar thin materials. Kit includes total of six uniquely shaped blades.
Pincher (Pt#280)
Ideal for gripping wire-like materials, screws and non-uniform components.
MCC Tool Heads
MCC-to-LCC Adapter (Pt#310)
The Adapter allows an LCC tool head or LCC extension to be mounted on the MCC handle or an MCC extension. The mechanical design allows virtually 100% of the MCC force to be translated into LCC tool head.
Cutter Head (Pt#330)
The MCC Cutter is ideal for cutting thicker gauge wire and shielded cable up to gauge 0 AWG wire, or Ø.325 inch (8.25 mm) in diameter. Produces a 0.15 inch slug of removed material.
Talon Head (Pt#380)
The MCC Talon is a cable shunting device that allows shorting of a shielded cable without cutting.
The MCC Talon drive head is intended for standard coax and wires between Ø .125 and Ø.25 inch (3 to 6 mm) in diameter.
The Talon Head shunting device design is centered on the typical Type ‘C’ High Voltage Coaxial Cable that is sized Ø .195” in diameter.
Deployable Pin
The Talon Head utilizes a “bed of nails” type of arrangement in a small deployable pin head that is driven by the MCC Talon head. This deployable pin is proven to produce a remarkable 0% failure in shunted cable.
The MCC kit comes with only XXX deployable pins.
Note: Deployable pin heads are sold by Sandia National Laboratory. Contact Molly Brown (mwells@sandia.gov) for additional pin heads.
EOD Tool Heads Technical Specifications
| LCC Tool Heads: | MCC Tool Heads: |
| LCC Side Cutter Head (Pt#210) | MCC-to-LCC Adapter (Pt#310) |
| LCC Flat Nose Plier (Pt#220) | MCC Cutter Head (Pt#330) |
| LCC Needle Nose Plier (Pt#230) | MCC Talon Head (Pt#380) (XX pins) |
| LCC Scissor Head (Pt#240) | |
| LCC Nipper Head (Pt#250) | |
| LCC Double Shear Head (Pt#260) | |
| LCC Razor Blade Kit (Pt#270) | |
| LCC Pincher Head (Pt#280) | |
| *All LCC tool heads can be used with the MCC handle when adapted using the MCC-to-LCC Adapter (Pt#310) | |
| **additional EOD tool heads can be purchased separately | |
LCC vs MCC - Which is Right for You?
| LCC | MCC | |
| Best For | Precision cutting, gripping, manipulation, and fine-control tasks | Shielded cable, heavy-gauge wire, and cable shunting applications |
| Feel / Precision Control | High | Medium |
| Cutting Force | Low | High |
| Max Wire Capacity | 3 AWG wire, or Ø.229 inch (5.83 mm) in Diameter | 0 AWG wire, or Ø.325 inch (8.25 mm) in Diameter |
| Max Reach | Up to 36" | Up to 36" |
| Can Use All EOD Tool Heads | No | Yes |
| Electrical Isolation | No | Yes |
| Learn More About the LCC | Learn More About the MCC |
Explore the EOD-1 Render Safe Tools
Precision-engineered tools for cutting, gripping, penetrating, shorting and manipulating components during explosive ordnance disposal render safe operations.
LCC Utility Tool Kit
Best For: Precision cutting, gripping, manipulation, and fine-control tasks.
MCC Utility Tool Kit
Best For: Shielded cable, heavy-gauge wire, and cable shunting.
EOD-1 Render Safe Tooling
Precision-engineered tools for cutting, gripping, penetrating, shorting and manipulating components during explosive ordnance disposal render safe operations. Professional Explosive Ordnance Disposal tools trusted since 2012.
Built for Those Who Protect Others
The EOD-1 platform is trusted by military, law enforcement, federal, and international defense organizations since 2012. Sales of EOD-1 render safe tooling are restricted to qualified Government, Military, and Law Enforcement organizations.
Disclaimer: We provide services/products to the U.S. Military and various government agencies, and defense contractors. However, this implies no official endorsement, sponsorship, or affiliation.
Includes Lifetime Manufacturer's Warranty
These products are used to help protect lives around the world, and therefore we take tremendous pride in the production of our EOD-1 render safe tooling. So while we hold the license for the EOD-1 suite, we include a lifetime warranty on our manufactured parts. This is just one of our ways to ensure you receive the highest quality, longest-lasting tooling. If your tooling ever fails, contact us and we will work with you to repair or replace the tooling.
Sales are Limited to Government, Military, and Law Enforcement
Export Control Notice: These EOD-1 documents and subsequent information contain technical data, the export of which is restricted by the Arms Export Control Act (22 U.S.C. §2751, et seq.), the Atomic Energy Act of 1954, as amended (42 U.S.C. §2011), or the Export Administration Act of 1979, as amended (50 U.S.C. §2401, et seq.). Violations of these laws may result in severe administrative, civil, or criminal penalties. Prospective purchasers are responsible for complying with all applicable U.S. export control laws and regulations. Please review our Export Control Notice before requesting technical documentation or placing an order. Therefore, all EOD-1 Tooling sales are limited to Government, Military, and Law Enforcement only.
