Medium Cable Cutter (MCC) Utility Tool Kit
The Medium Cable Cutter (MCC) Utility Tool Kit is a powerful EOD render safe tool system that provides superior hand-actuated cutting ability and shorting capability compared to the LCC kit. Includes interchangeable tool heads and extension rods for increased reach and versatility.
Best For: Shielded cable, heavy-gauge wire, and cable shunting applications.
- Exceptional cutting force compared to LCC
- Electrically isolated from target
- Modular tool head system for mission flexibility
- Extension capability for increased standoff
- Lightweight, durable and field-ready
Confidence During EOD Render Safe Operations
When greater cutting force matters most, or the need to shunt a cable, count on the MCC in your EOD render safe operations.
The MCC Utility Tool Kit expands on the EOD-1 render safe tooling suite by providing superior hand-actuated cutting ability and shorting capability than the LCC kit, for materials including shielded cable and wire up to 0 AWG, or Ø.325 inch (8.25 mm) in diameter.
Unlike the LCC Utility Tool Kit, the MCC has the added benefit of being electrically isolated from the cutting and shorting action.
The entire unit is mechanically driven, so the operator can feel virtually 100% of the tool’s engagement while in use. Each MCC tool head will fit through a Ø1.00 inch penetration hole or insertion point.
The MCC handle is hand actuated by a power grip design, similar to a squeezing a clamp or pair of pliers. This design provides the operator several hundred of pounds of linear force for cutting and shorting materials such as shielded cable and wire up to 0 AWG, or Ø.325 inch (8.25 mm) in diameter.

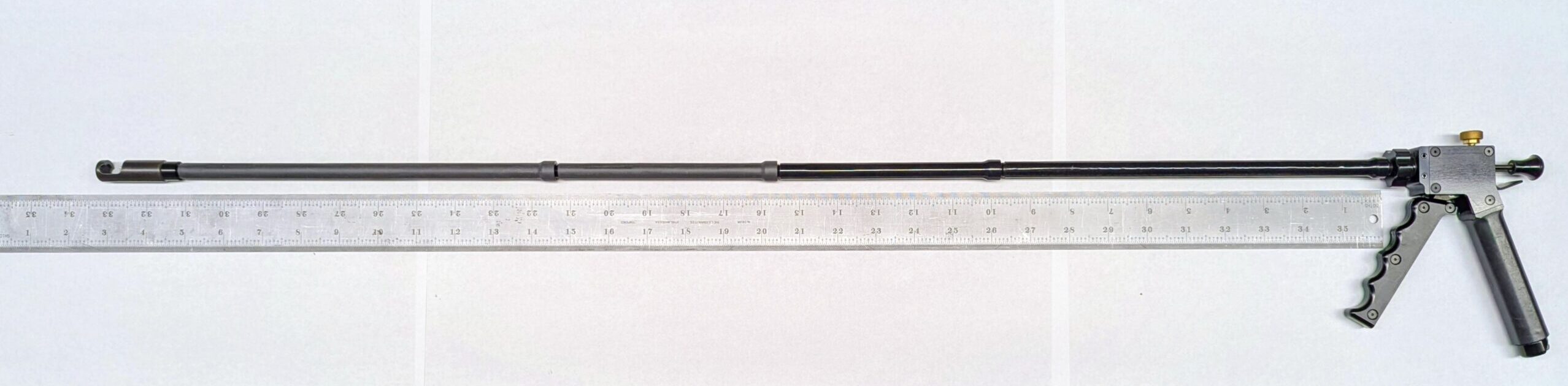

The MCC helps your operator reach further with four extensions: two 6-inch extensions, and two 12-inch extensions. When combined, your operator can reach up to 36-inches from the MCC handle. The extensions are 100% mechanical, so there is nearly no loss of cutting ability over extended distances.
Made from aircraft-grade aluminum and machined with precision, the extensions will ensure your EOD render safe operations can be conducted repeatedly and reliably regardless of length.
Why EOD Operators Choose the MCC Utility Tool Kit
Engineered for precision. Built for Safety. Designed for mission success.
Confidence in Heavy Cut Operations
Power grip handle design provides a superior output force for cutting, gripping, and shunting tasks. Allows operators to perform heavier-duty render safe procedures with confidence while reducing risk.
Improved Critical Decision-Making
Nearly 100% mechanical engagement allows operators to accurately feel how the tool is interacting with the target. Improves decision-making during sensitive operations where situational awareness and control are essential.
Adaptable to Field Conditions
Three interchangeable EOD tool heads exclusive to the MCC design and adaptable to the LCC tool heads. One platform performs multiple operational tasks without excess tools. This reduces the equipment burden while increasing adaptability in changing field conditions.
Extended Reach or Stand-Off
Four extension rods provide up to 36 inches of reach. Allows operators to work farther from the target while maintaining precise control. Enhances operator safety by increasing separation from potential hazards.
Consistent Performance at Length
100% mechanical extension system. Maintains cutting force and tool responsiveness at maximum extension. Provides consistent performance regardless of reach.
Built to Last
Precision-machined components and robust mechanical design ensures consistent tool performance across repeated use cycles.

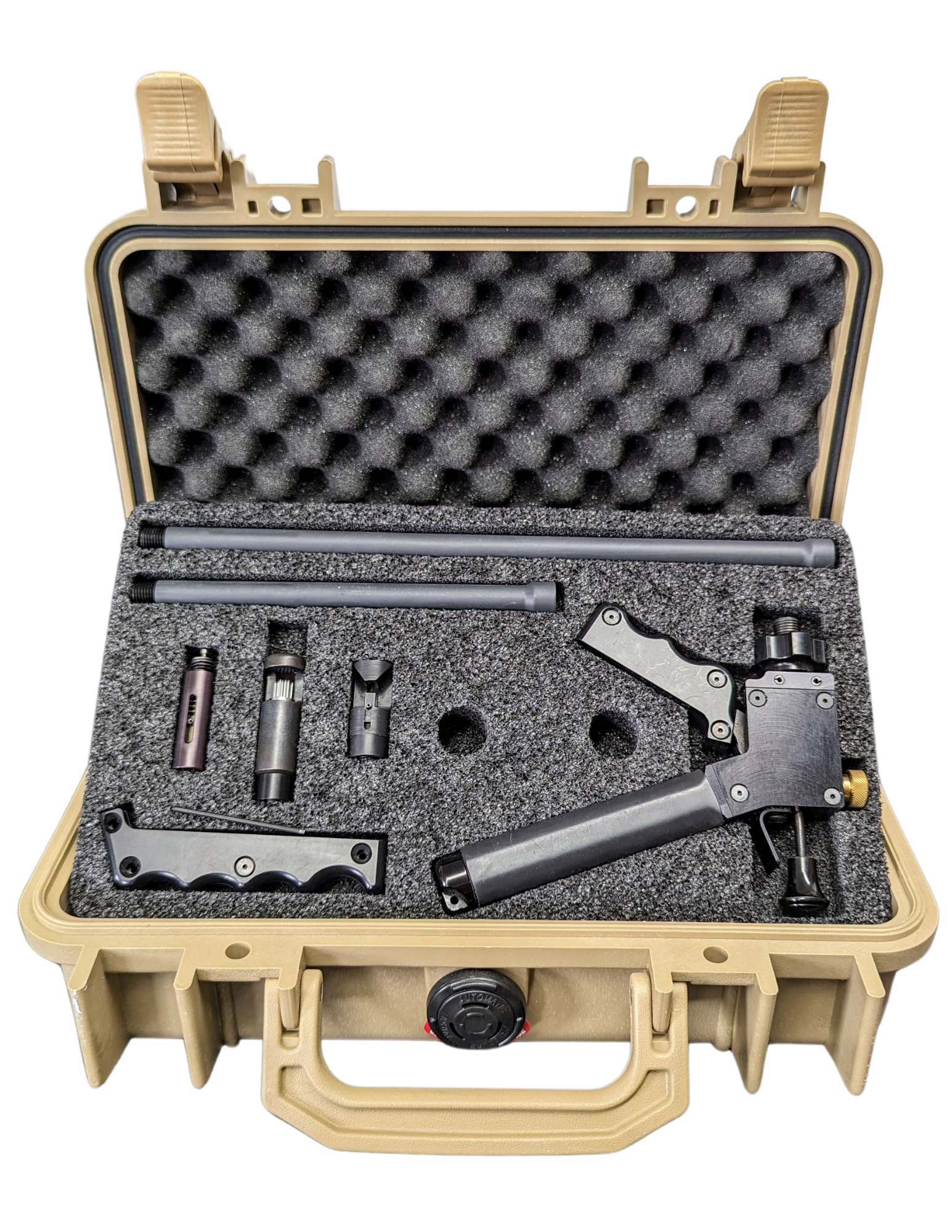

What is included in the MCC kit
The Medium Cable Cutter (MCC) Utility Tool Kit comes field-ready for EOD render safe operations.
MCC Handle
Ideal for high-force cutting and shunting EOD render safe operations, the 100% mechanically driven, palm-actuated handle gives operator significant force output during operation. Includes a secondary, extended length handle for an advanced grip. Aircraft grade aluminum and hardened steel components ensure long field life.
6 inch Extension Rods (2 each)
Six inch extension rods afford the operator additional reach. Driven by actuating the MCC handle, this 100% mechanically driven assembly gives the operator nearly no loss in feel during operation. Aircraft grade aluminum and hardened steel components ensure long field life.
12 inch Extension Rods (2 each)
Twelve inch extension rods afford the operator additional reach. Driven by actuating the MCC handle, this 100% mechanically driven assembly gives the operator nearly no loss in feel during operation. Aircraft grade aluminum and hardened steel components ensure long field life.
Case with Foam Cutouts
The MCC kit comes complete in a case with foam cutouts uniquely shaped to house each component of the kit.
MCC-to-LCC Adapter (Pt#310)
The Adapter allows an LCC tool head or LCC extension to be mounted on the MCC handle or an MCC extension. The mechanical design allows virtually 100% of the MCC force to be translated into LCC tool head.
Cutter Head (Pt#330)
The MCC Cutter is ideal for cutting thicker gauge wire and shielded cable up to gauge 0 AWG wire, or Ø.325 inch (8.25 mm) in diameter. Produces a 0.15 inch slug of removed material.
Talon Head (Pt#380)
The MCC Talon is a cable shunting device that allows shorting of a shielded cable without cutting.
The MCC Talon drive head is intended for standard coax and wires between Ø .125 and Ø.25 inch (3 to 6 mm) in diameter.
The Talon Head shunting device design is centered on the typical Type ‘C’ High Voltage Coaxial Cable that is sized Ø .195” in diameter.
Deployable Pin
The Talon Head utilizes a “bed of nails” type of arrangement in a small deployable pin head that is driven by the MCC Talon head. This deployable pin is proven to produce a remarkable 0% failure in shunted cable.
The MCC kit comes with only XXX deployable pins.
Note: Deployable pin heads are sold by Sandia National Laboratory. Contact Molly Brown (mwells@sandia.gov) for additional pin heads.
Medium Cable Cutter (MCC) Technical Specifications
| Primary Function | High-force cutting and cable shunting |
| Tool Type | Palm-Actuated Mechanical |
| Max Wire Capacity | 0 AWG, or Ø.325 inch (8.25 mm) in Diameter |
| Max Reach | Up to 36" |
| Material | Aircraft-Grade Aluminum / Hardened Steel |
| Weight (Full Kit) | 16.5oz |
| Case Dimensions | 12.5in x 9in x 2.5in |
| Country of Origin | USA |
| Medium Cable Cutter (MCC) Utility Tool Kit (PT#300) Includes: | |
| MCC Handle | MCC to LCC Adapter (Pt#310) |
| MCC 6" Extension Rods (2 each) | MCC Cutter Head (Pt#330) |
| MCC 12" Extension Rods (2 each) | MCC Talon Head (Pt#380) (XX pins) |
| MCC Extended Length Handle | Case with foam cutouts |
| *Deployable pin heads for MCC Talon sold by Sandia Lab (mwells@sandia.gov) | |
| **additional components can be purchased separately | |
MCC vs LCC - Which is Right for You?
| MCC | LCC | |
| Best For | Shielded cable, heavy-gauge wire, and cable shunting applications | Precision cutting, gripping, manipulation, and fine-control tasks |
| Feel / Precision Control | Medium | High |
| Cutting Force | High | Low |
| Max Wire Capacity | 0 AWG wire, or Ø.325 inch (8.25 mm) in Diameter | 3 AWG wire, or Ø.229 inch (5.83 mm) in Diameter |
| Max Reach | Up to 36" | Up to 36" |
| Can Use All EOD Tool Heads | Yes | No |
| Electrical Isolation | Yes | No |
| Request an MCC Quote | Learn More About the LCC |
Explore the EOD-1 Render Safe Tools
Precision-engineered tools for cutting, gripping, penetrating, shorting and manipulating components during explosive ordnance disposal render safe operations.
LCC Utility Tool Kit
Best For: Precision cutting, gripping, manipulation, and fine-control tasks.
EOD-1 Render Safe Tooling
Precision-engineered tools for cutting, gripping, penetrating, shorting and manipulating components during explosive ordnance disposal render safe operations. Professional Explosive Ordnance Disposal tools trusted since 2012.
Built for Those Who Protect Others
The EOD-1 platform is trusted by military, law enforcement, federal, and international defense organizations since 2012. Sales of EOD-1 render safe tooling are restricted to qualified Government, Military, and Law Enforcement organizations.
Disclaimer: We provide services/products to the U.S. Military and various government agencies, and defense contractors. However, this implies no official endorsement, sponsorship, or affiliation.
Includes Lifetime Manufacturer's Warranty
These products are used to help protect lives around the world, and therefore we take tremendous pride in the production of our EOD-1 render safe tooling. So while we hold the license for the EOD-1 suite, we include a lifetime warranty on our manufactured parts. This is just one of our ways to ensure you receive the highest quality, longest-lasting tooling. If your tooling ever fails, contact us and we will work with you to repair or replace the tooling.
Sales are Limited to Government, Military, and Law Enforcement
Export Control Notice: These EOD-1 documents and subsequent information contain technical data, the export of which is restricted by the Arms Export Control Act (22 U.S.C. §2751, et seq.), the Atomic Energy Act of 1954, as amended (42 U.S.C. §2011), or the Export Administration Act of 1979, as amended (50 U.S.C. §2401, et seq.). Violations of these laws may result in severe administrative, civil, or criminal penalties. Prospective purchasers are responsible for complying with all applicable U.S. export control laws and regulations. Please review our Export Control Notice before requesting technical documentation or placing an order. Therefore, all EOD-1 Tooling sales are limited to Government, Military, and Law Enforcement only.
